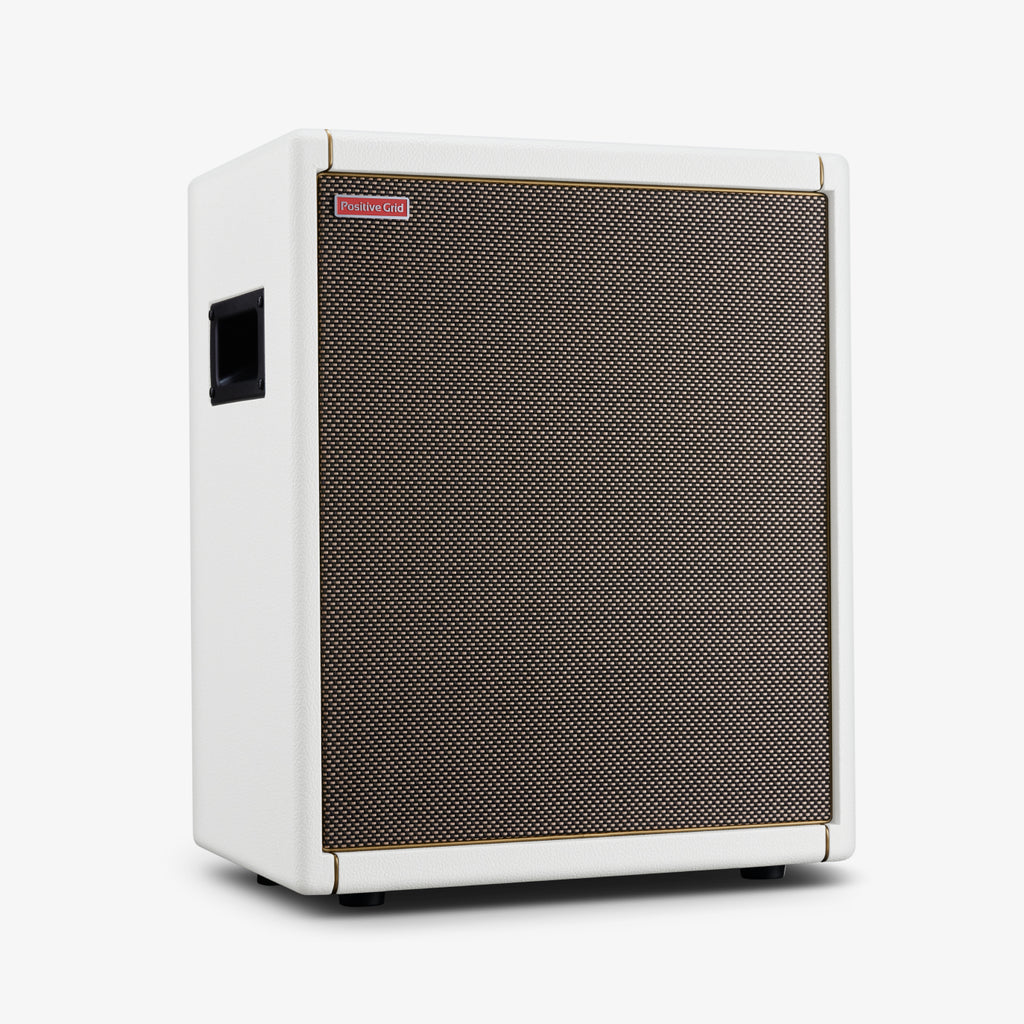

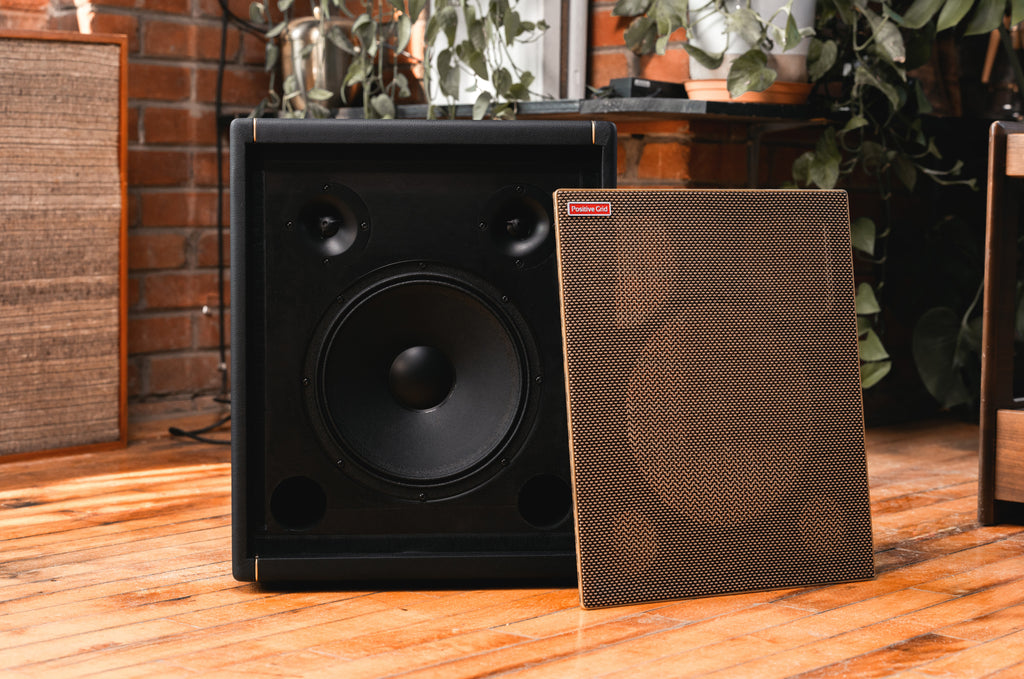

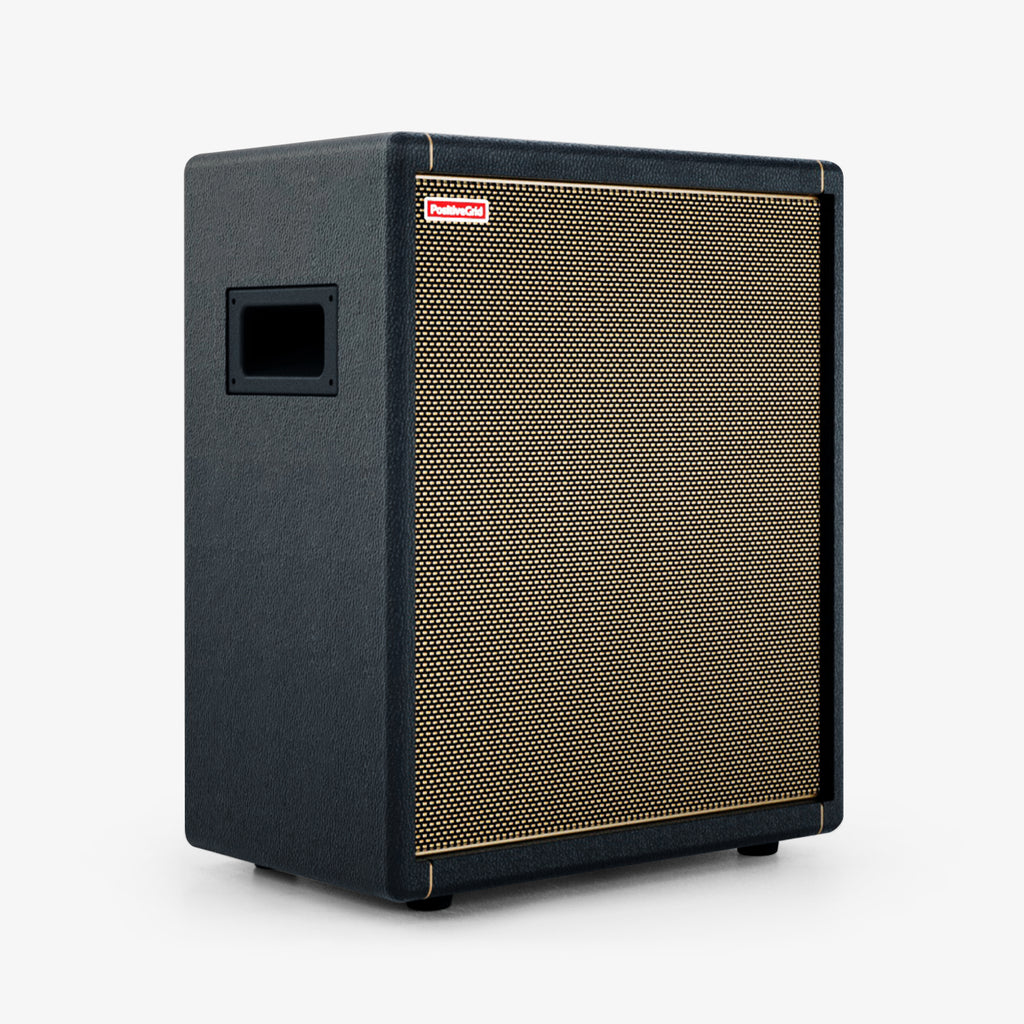

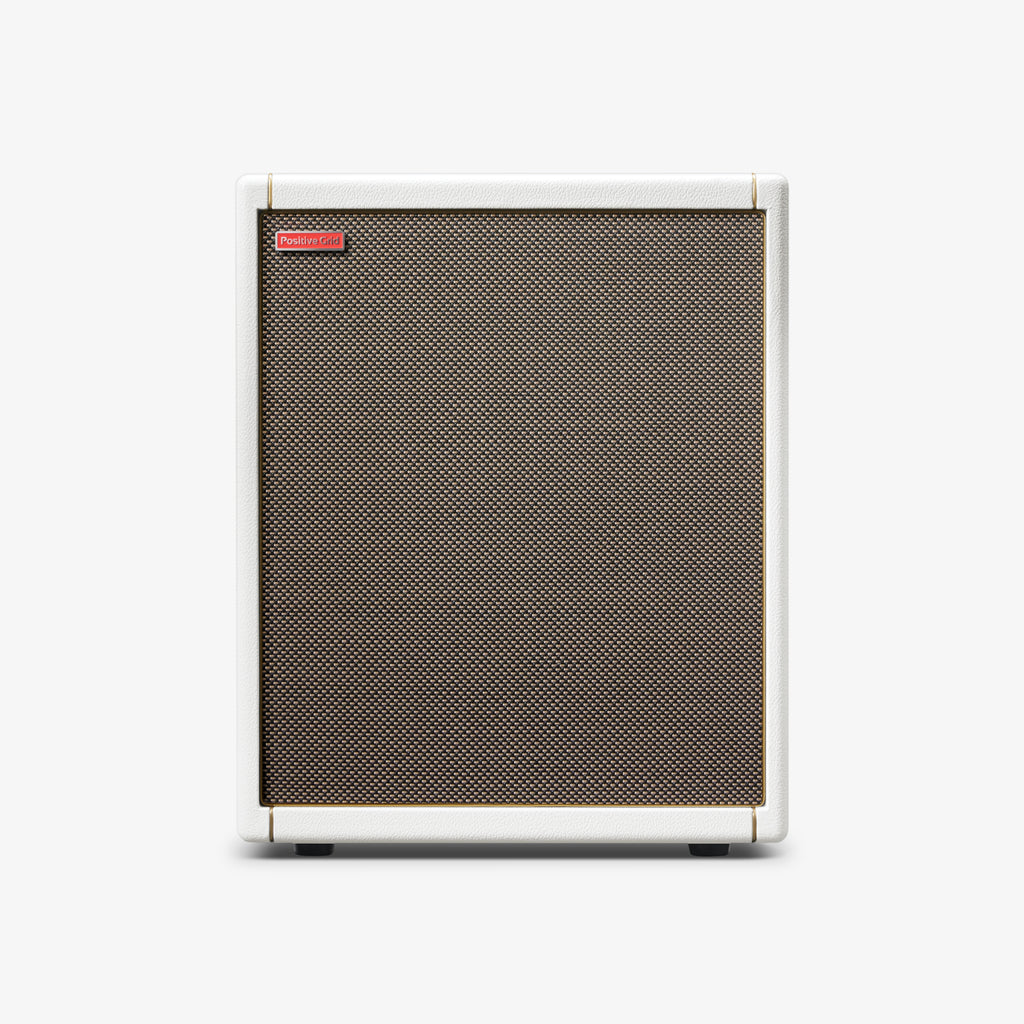

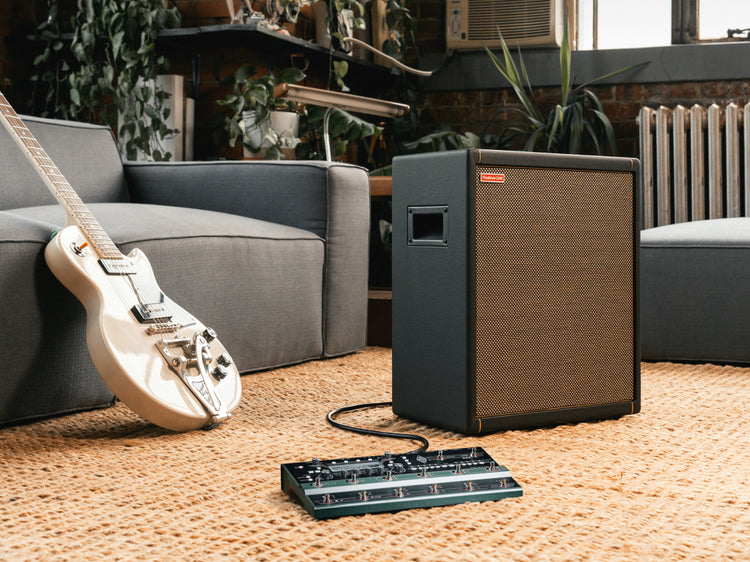

Spark CAB is a 140 Watt powered FRFR guitar cabinet/speaker designed to work seamlessly with Spark 40, Spark MINI, and Spark GO amps - providing a hassle-free setup and operation, as well as other gear and digital modeling processors. The Spark CAB provides guitarists with a versatile and high-quality sound reproduction solution for use in live performances, recording sessions, and home practice. The cabinet features a 10-inch woofer and 2 high-frequency dome tweeters, powered by a built-in 140-watt Class D amplifier.
Plug in. Get loud.
140-Watt Class D Powered FRFR Speaker Cabinet
140-Watt powered guitar amp speaker cabinet optimized to work seamlessly with Spark Series amps,¹ as well as other modelers, instruments or amps.² Versatile, high-quality sound for live performances, recording sessions and home practice.
Choose a color
Spark Series Amps sold separately.
${icon.iconText}
SPECS
AUDIO SPECIFICATIONS
FREQUENCY RANGE
45-20,000 Hz
STEREO/MONO
MONO
MAXIMUM SOUND PRESSURE LEVEL
117 dB (RMS), 120 dB (Peak)
CABINET PRINCIPLE
Bass Reflex
POWER AMPLIFIERS
140W (RMS), 400W (Peak) Class D
SPEAKERS
1x10-inch woofer, 2x1-inch (25mm) tweeter
TOTAL IMPEDANCE
4 ohms

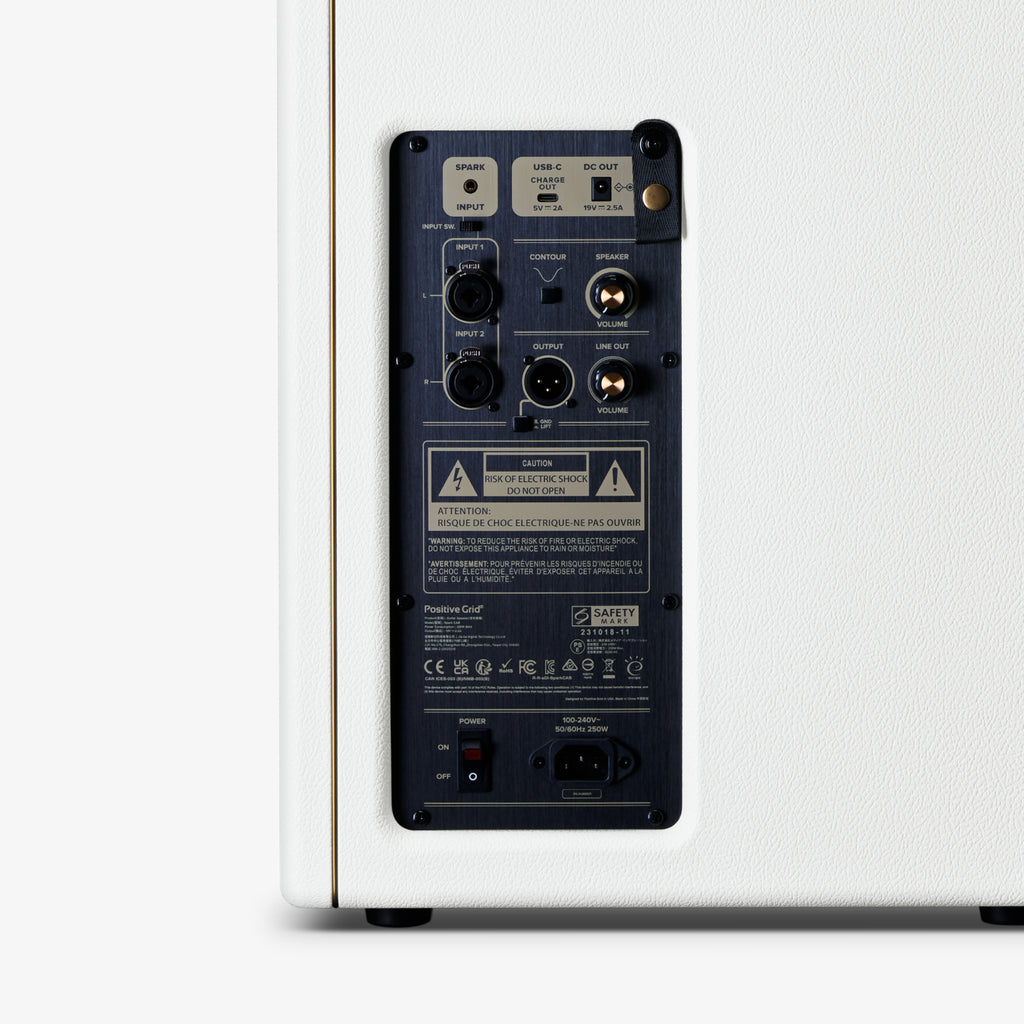

CONTROLS AND CONNECTIVITY

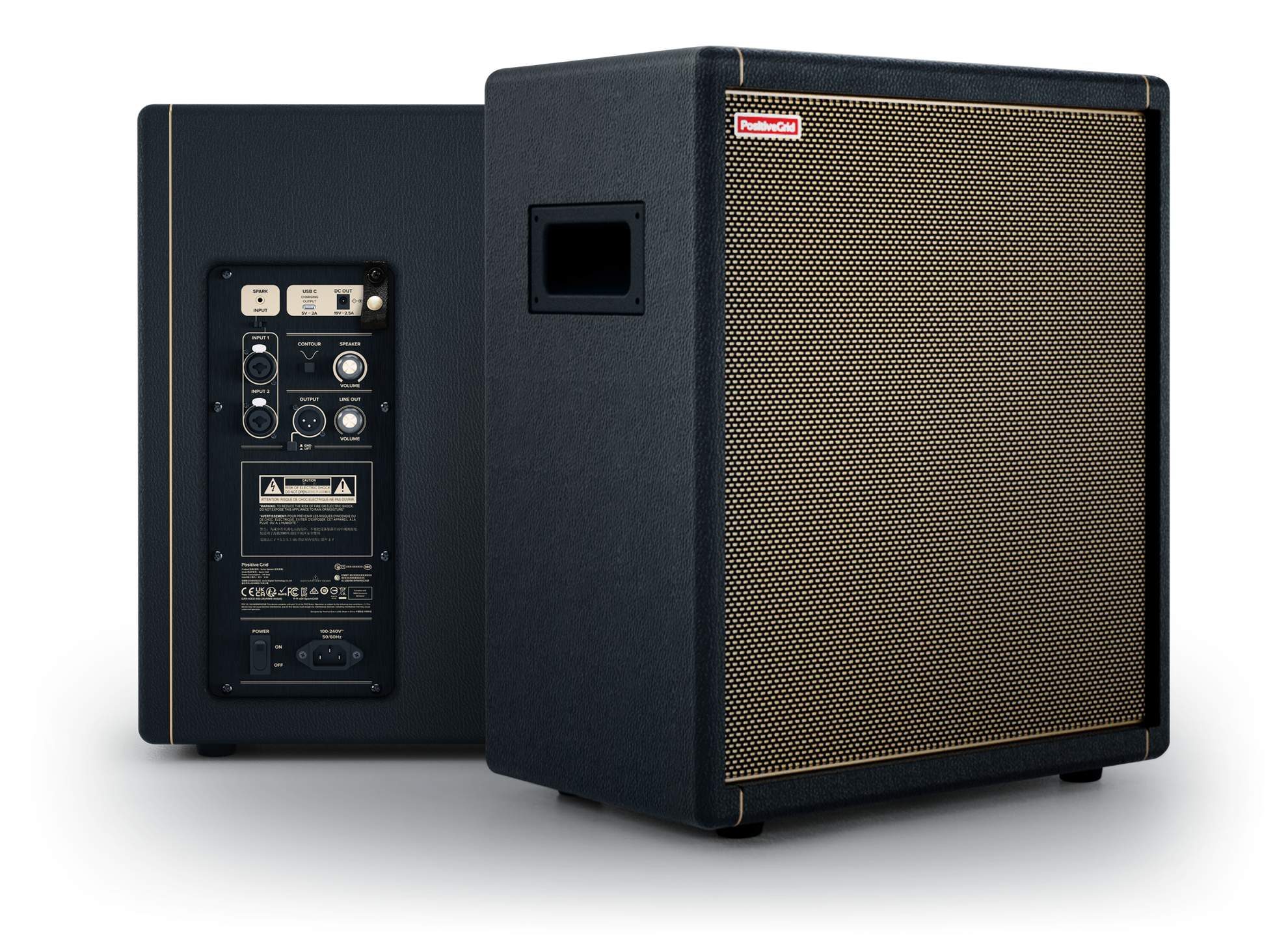

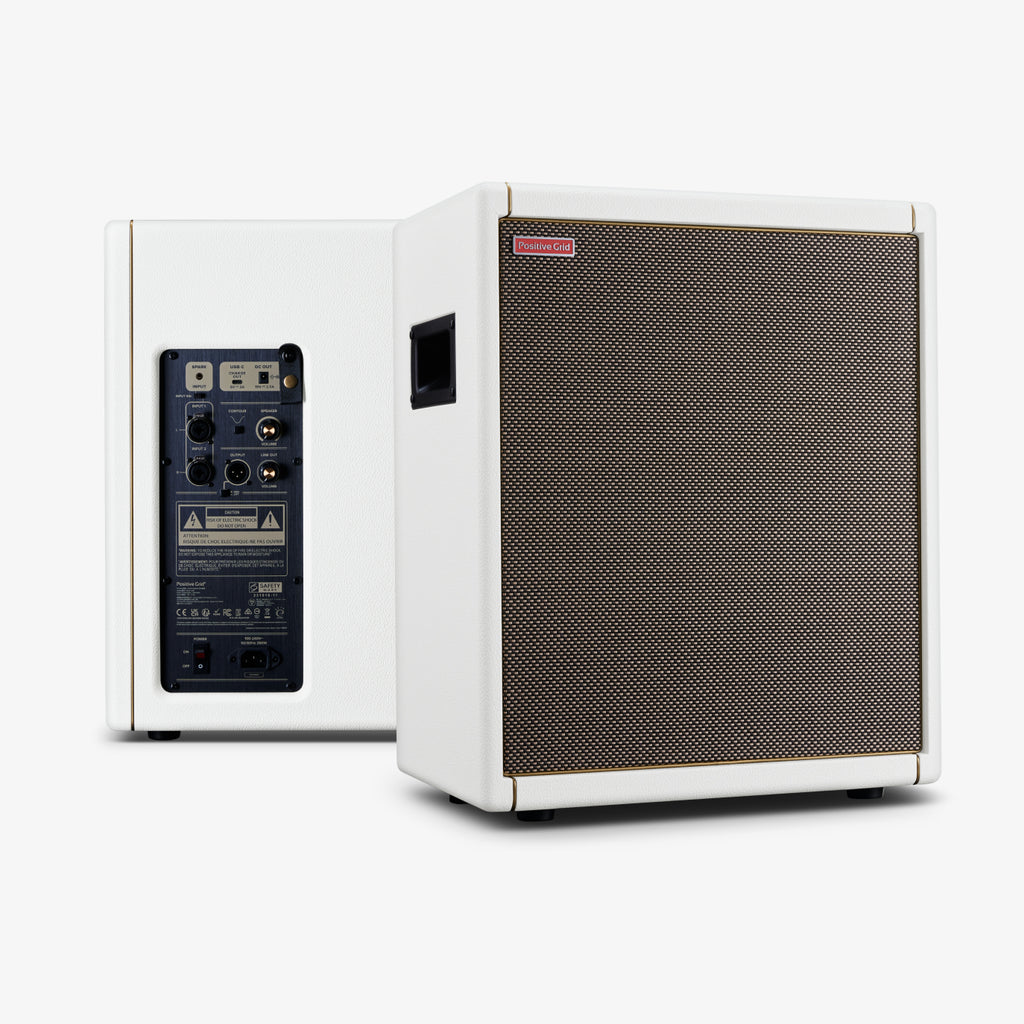

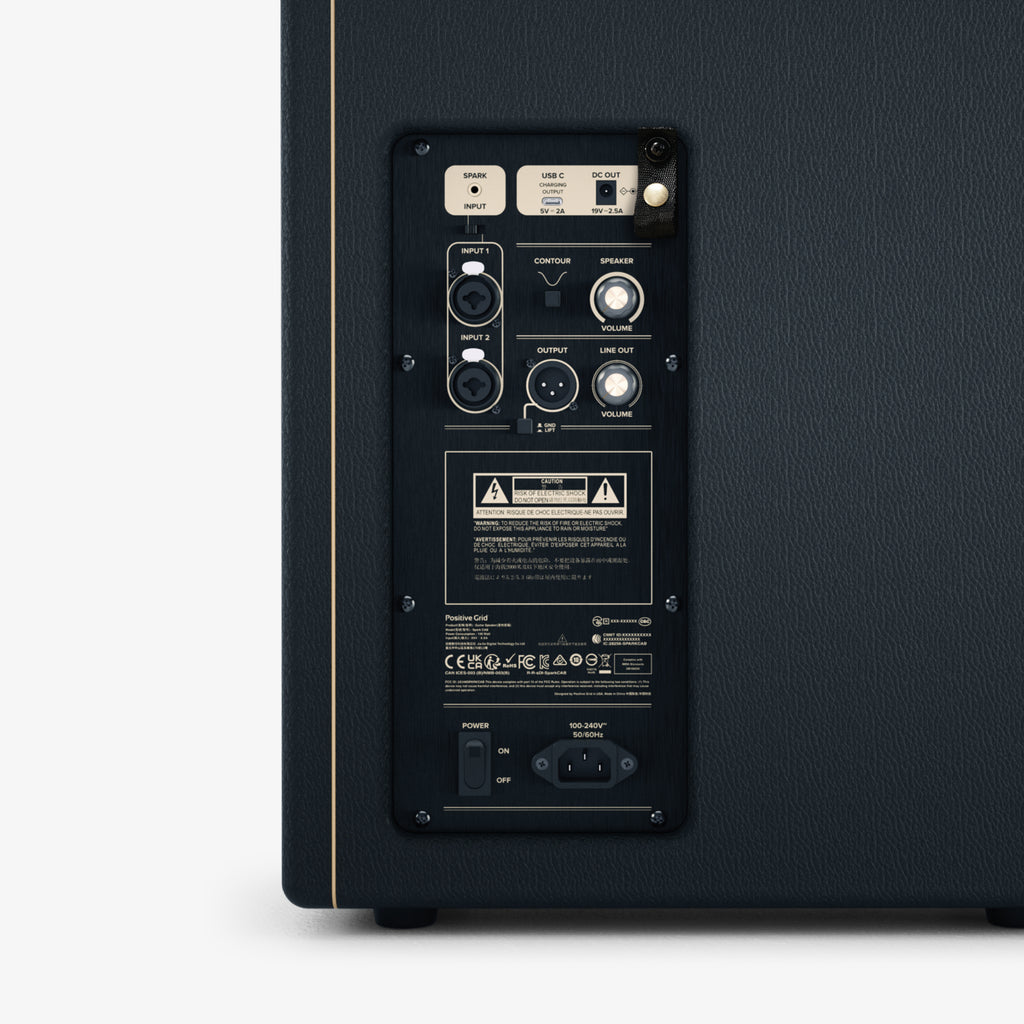

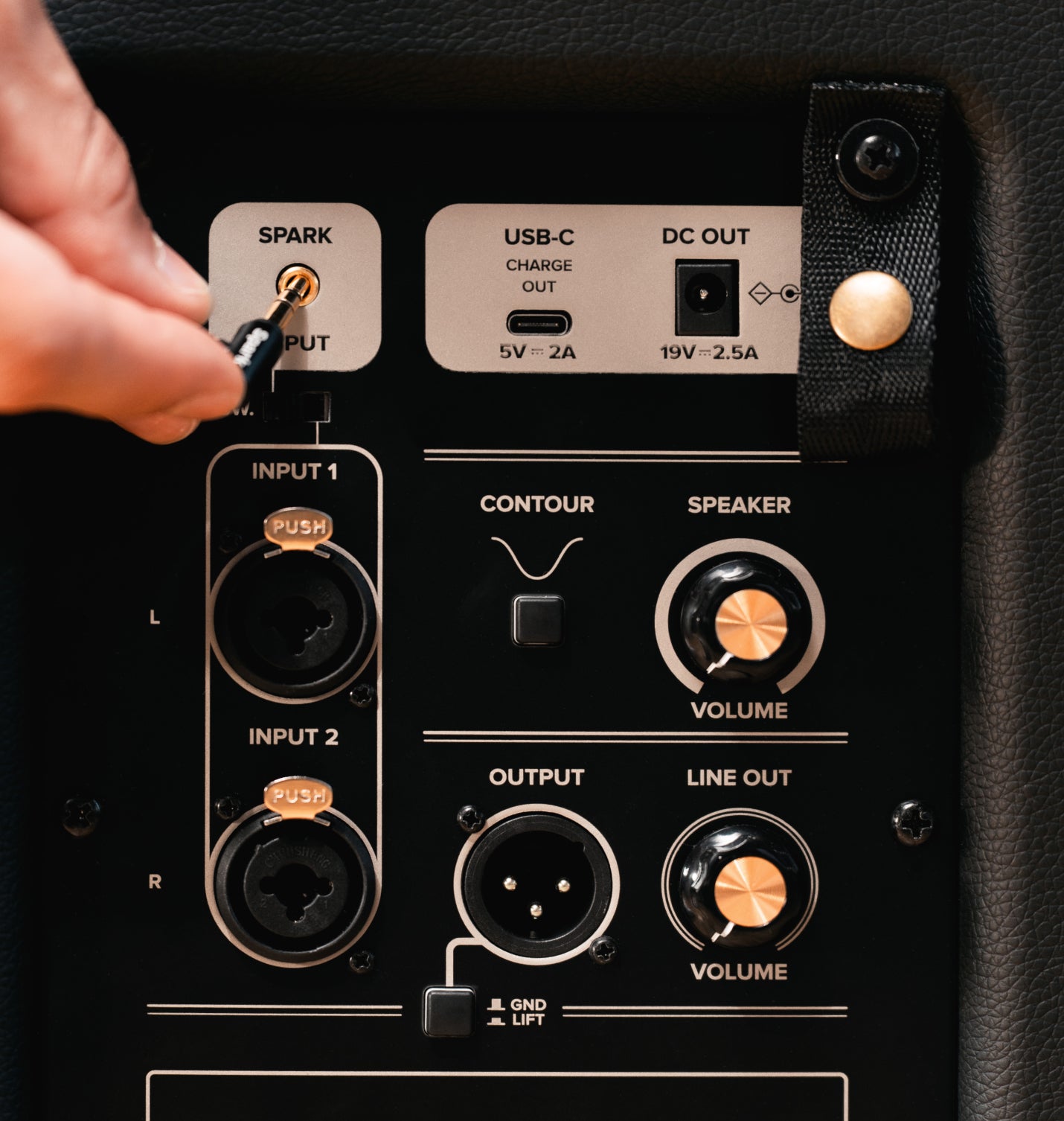

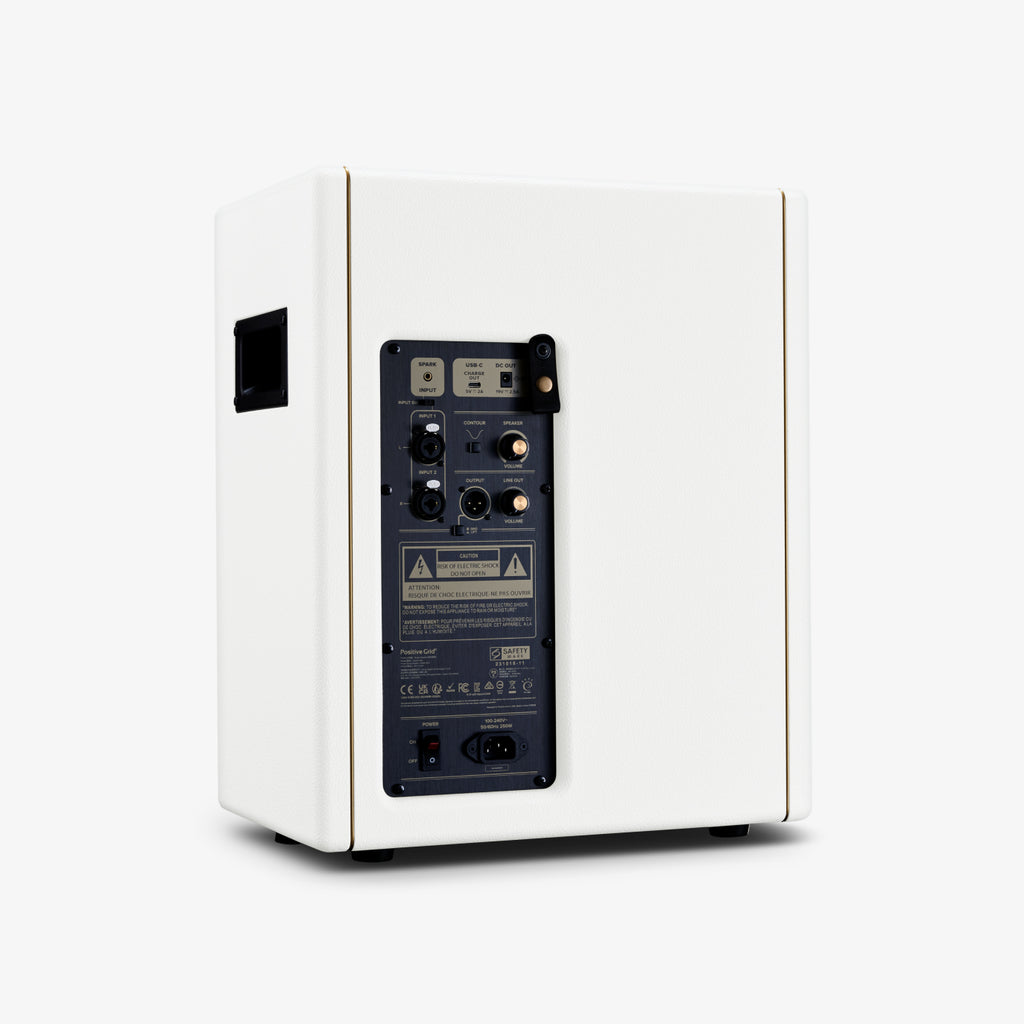

BACK PANEL CONTROLS
Input Selector - Switch between the 3.5 mm Spark Input and the two mono XLR/TRS Combo Inputs
Speaker Volume
Line Out Volume
Ground Lift Switch
Contour Switch - Boosts low and high frequencies to improve balance at low volumes
WIRED CONNECTIVITY
1 x 1/8" dedicated stereo Input for Spark Amp
2 x mono XLR/TRS combo inputs
1 x mono XLR balanced output
PHYSICAL UNIT
DIMENSIONS
492.5 x 399.8 x 255 mm (with rubber feet)
(19.39 x 15.74 x 10.04 in)
WEIGHT
13.5 kg
29.76 lbs
GRILLE CLOTH
Woven
Handle
2 recessed speaker handles on the sides
Cable Tie
1 adjustable cable tie for fixing instrument and audio cables on the back
INCLUDED IN THE BOX
BOX CONTENTS
3.5mm stereo audio cable for Spark amps
DC power cable for Spark
Power cord
Quick Start Guide
Safety Instructions Card
POWER
MAIN INPUT POWER
AC 100-240V
DC POWER OUTPUT For Spark
DC 19V/2.5A
USB-C POWER OUTPUT For Spark MINI & GO
DC 5V/2A
Amp your amp.
140-Watts of ferocious power, custom-designed to maximize Spark smart guitar amps.¹ Plug in. Get loud.
PERFORMANCE
This is big.
“Spark CAB is a game changer. If you love Spark, now you’ll be able to get all of those amazing patches and sounds you’ve created at gigging and recording levels!”
Elliot Easton Lead Guitarist, The Cars

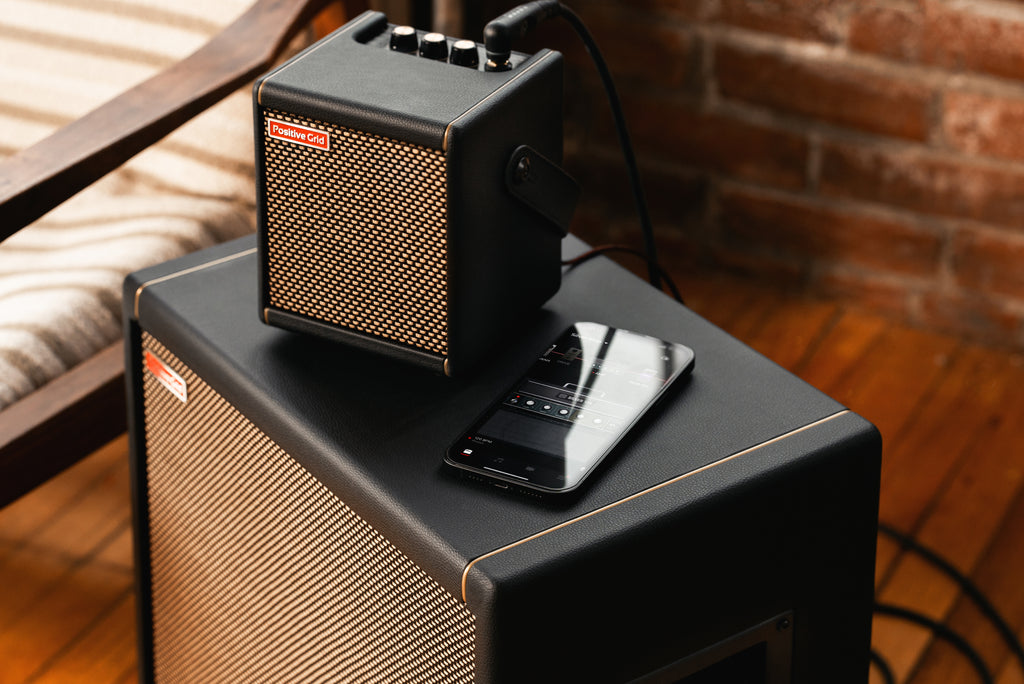

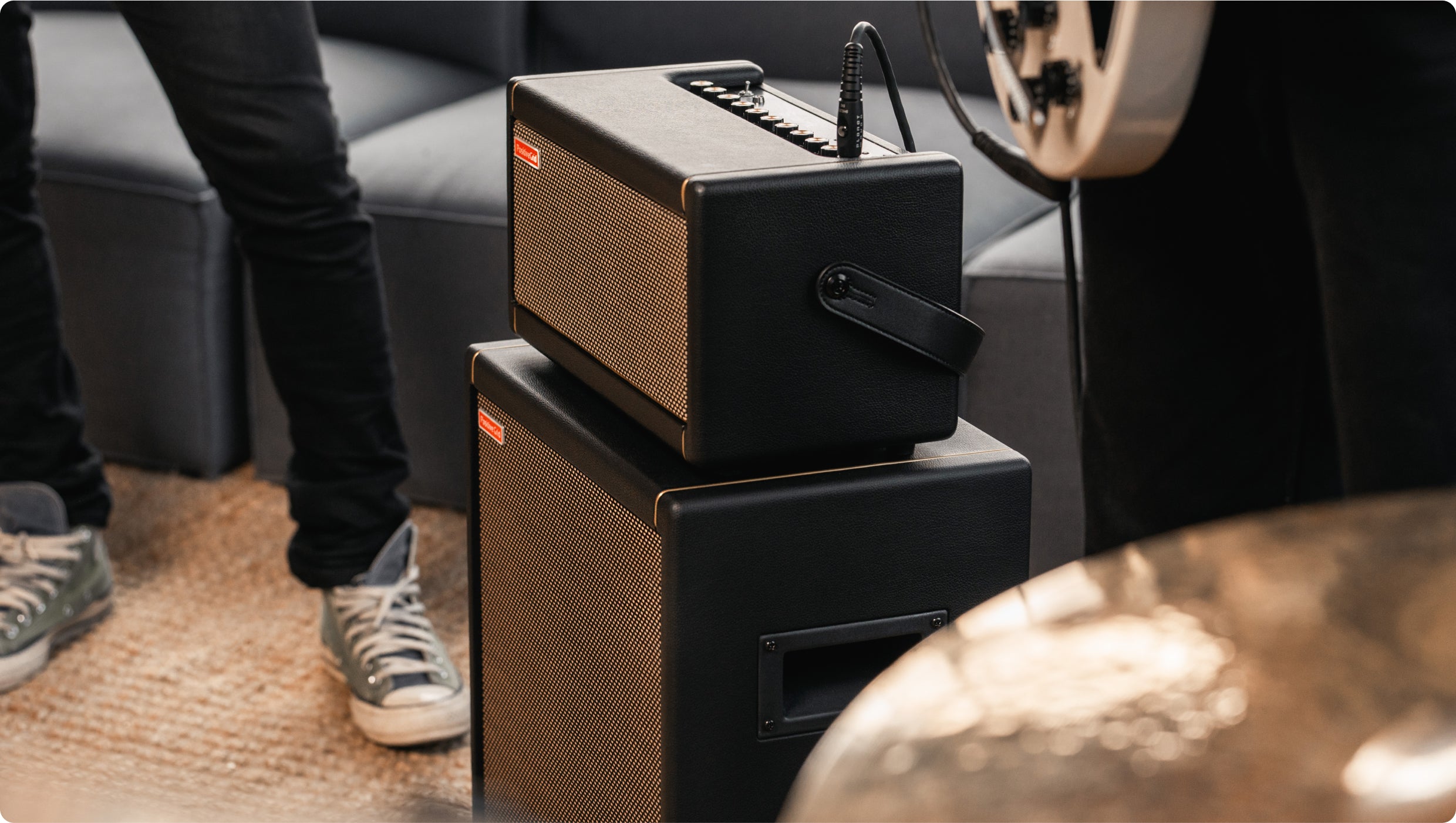

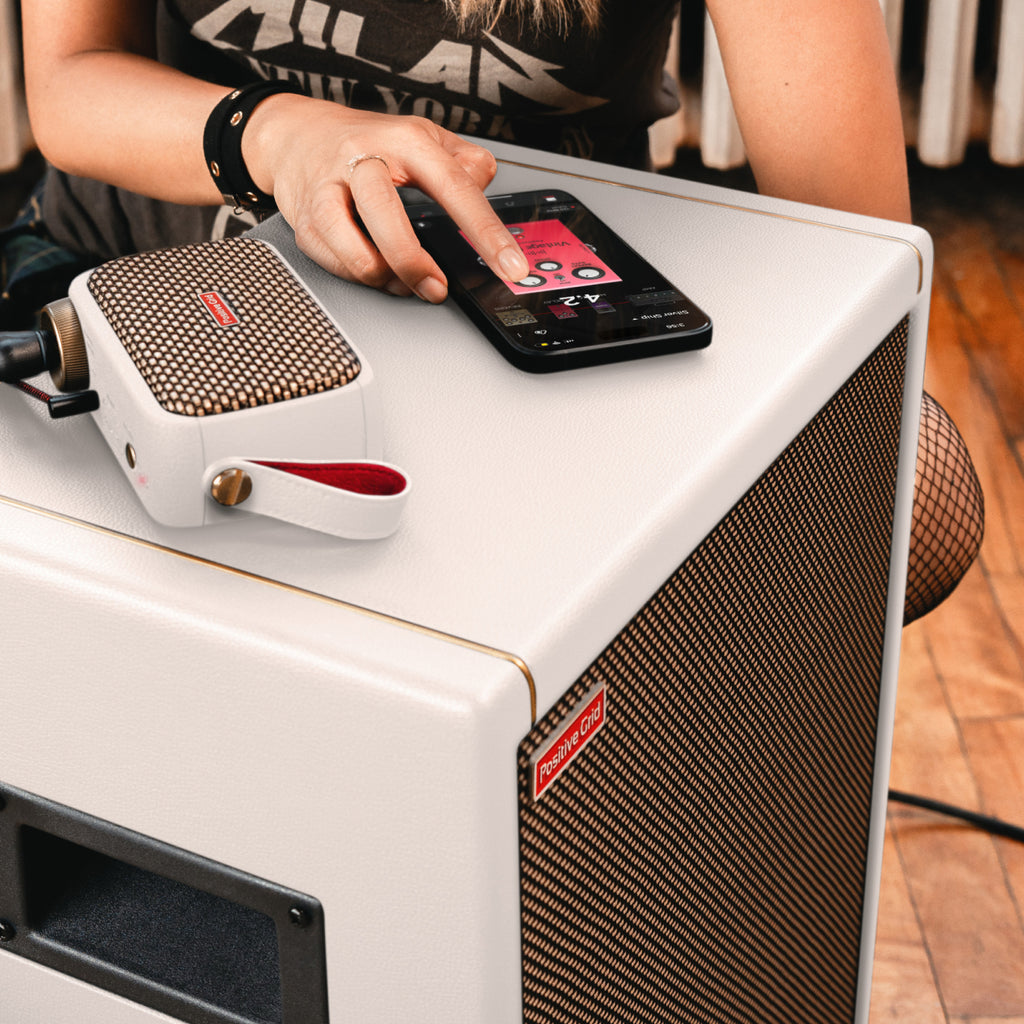

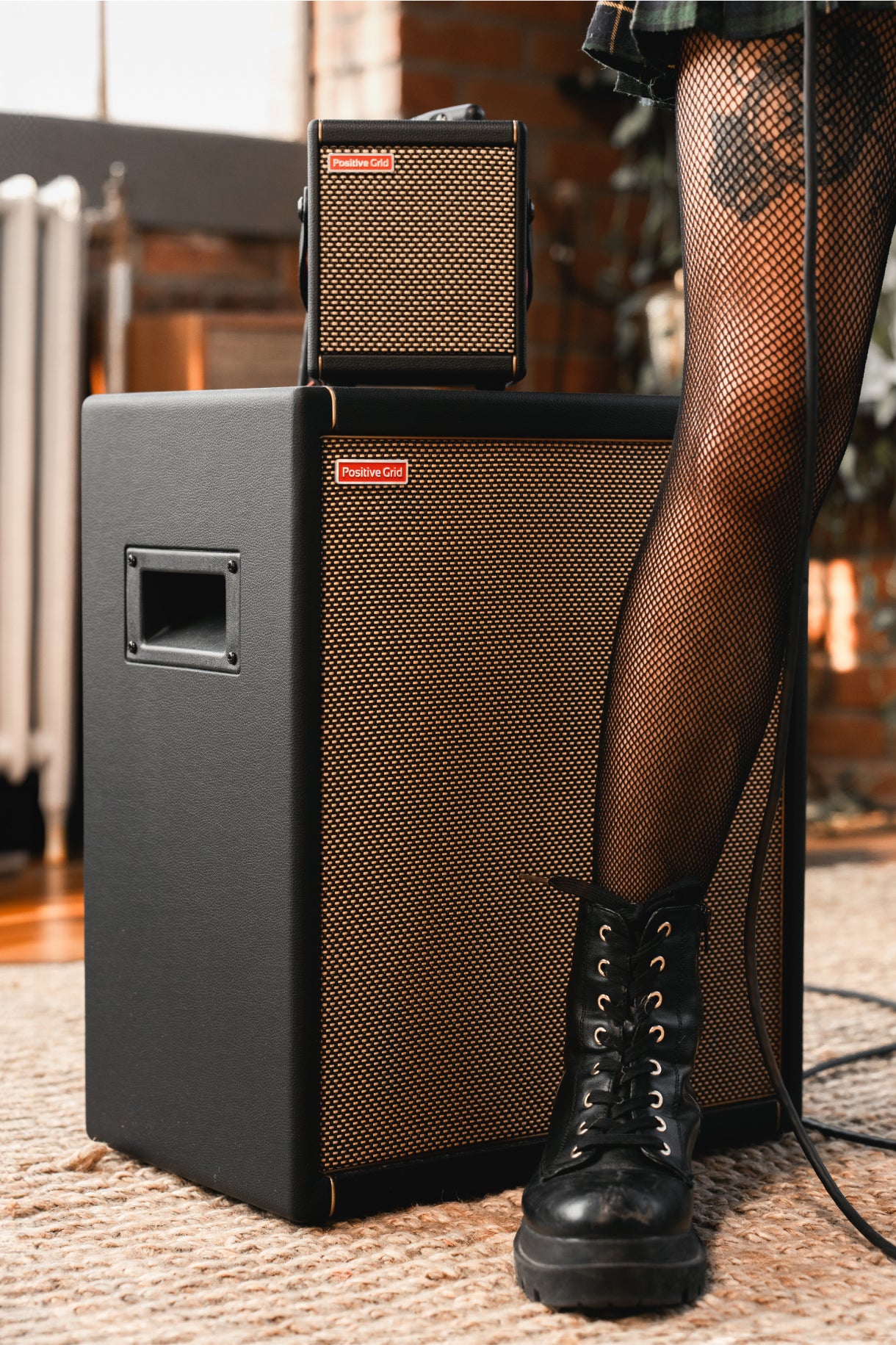

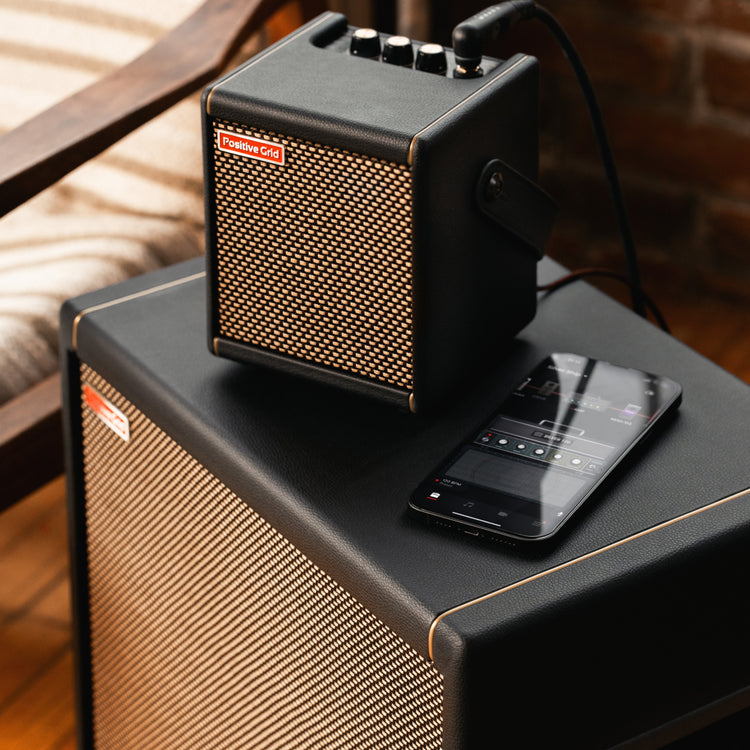

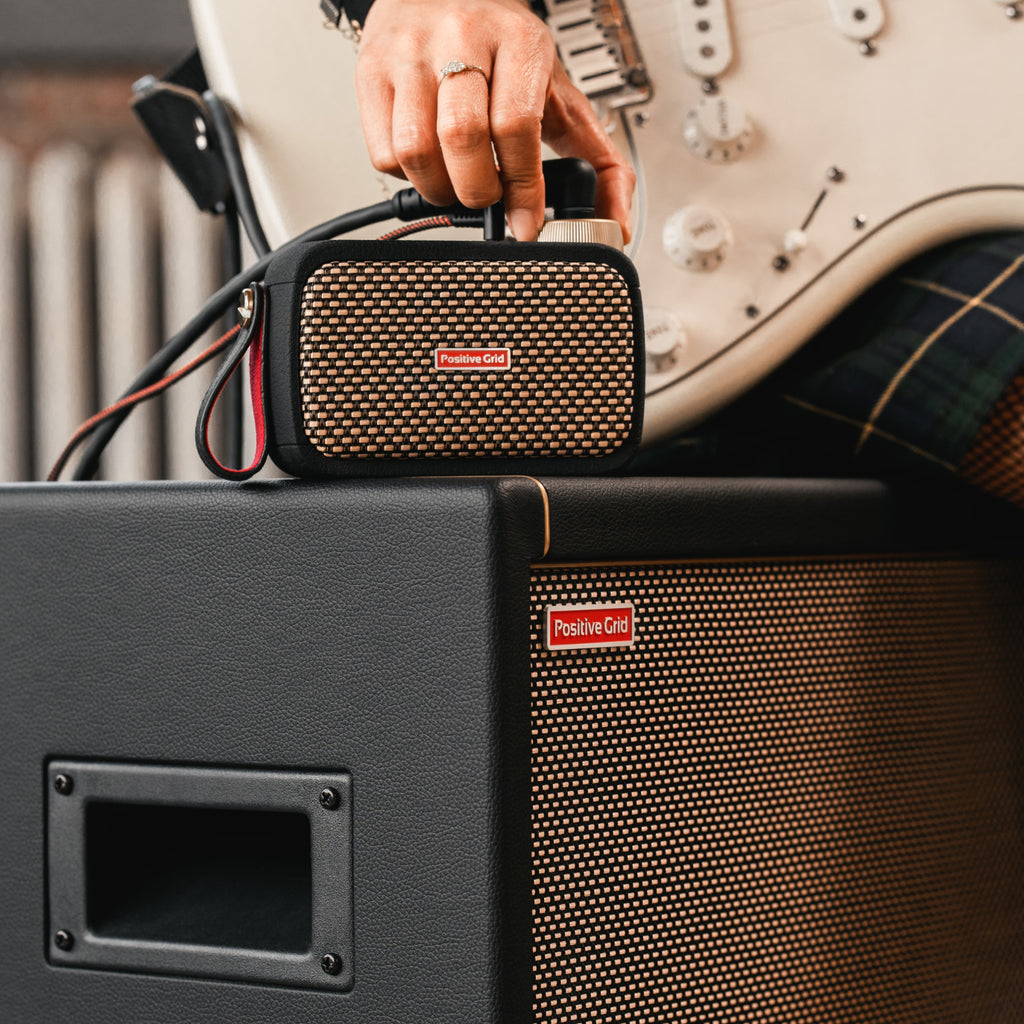

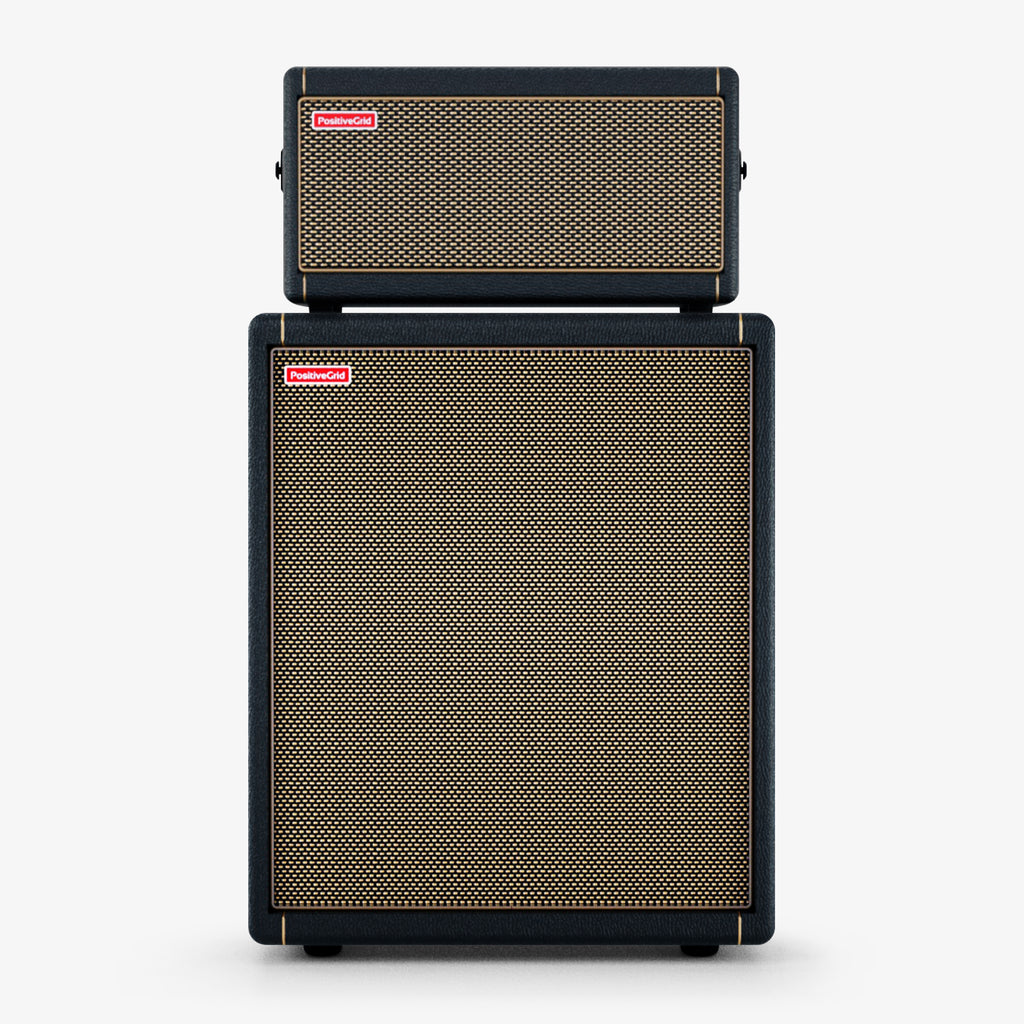

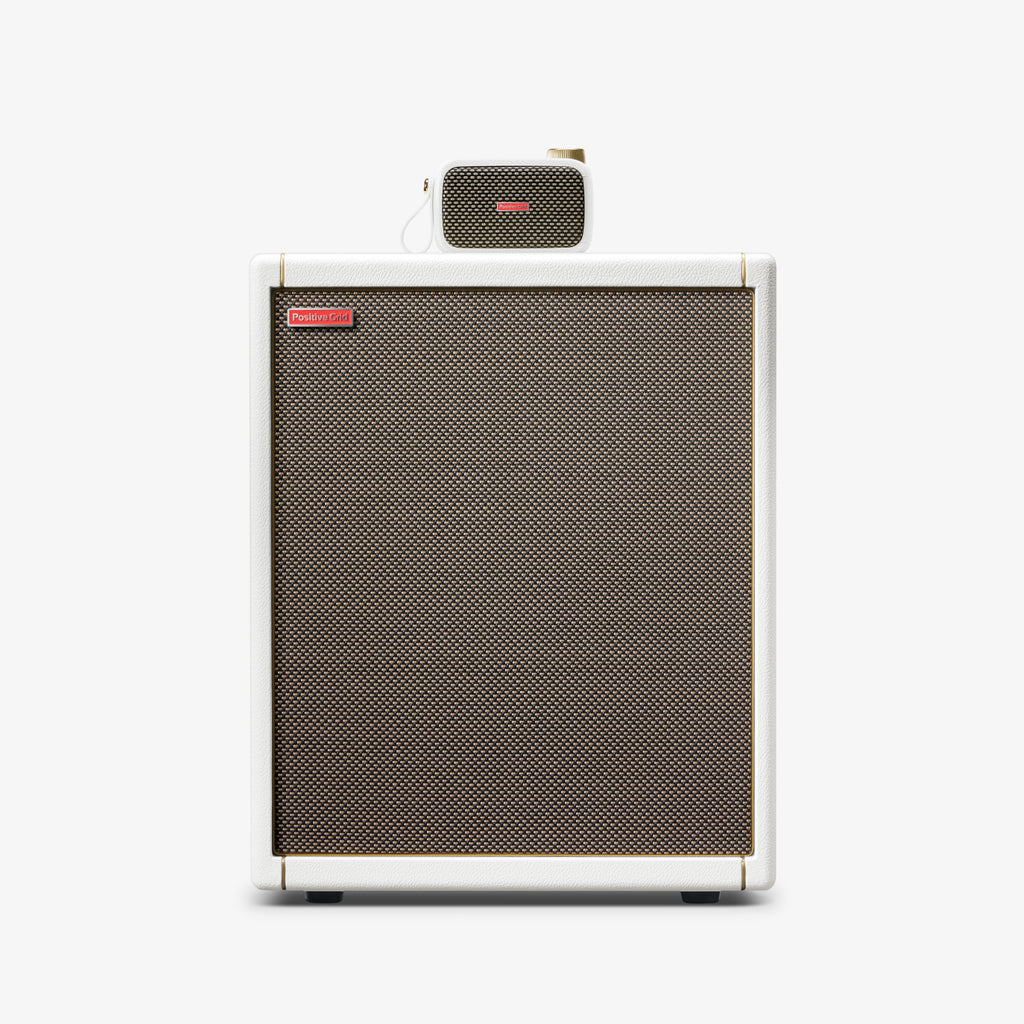

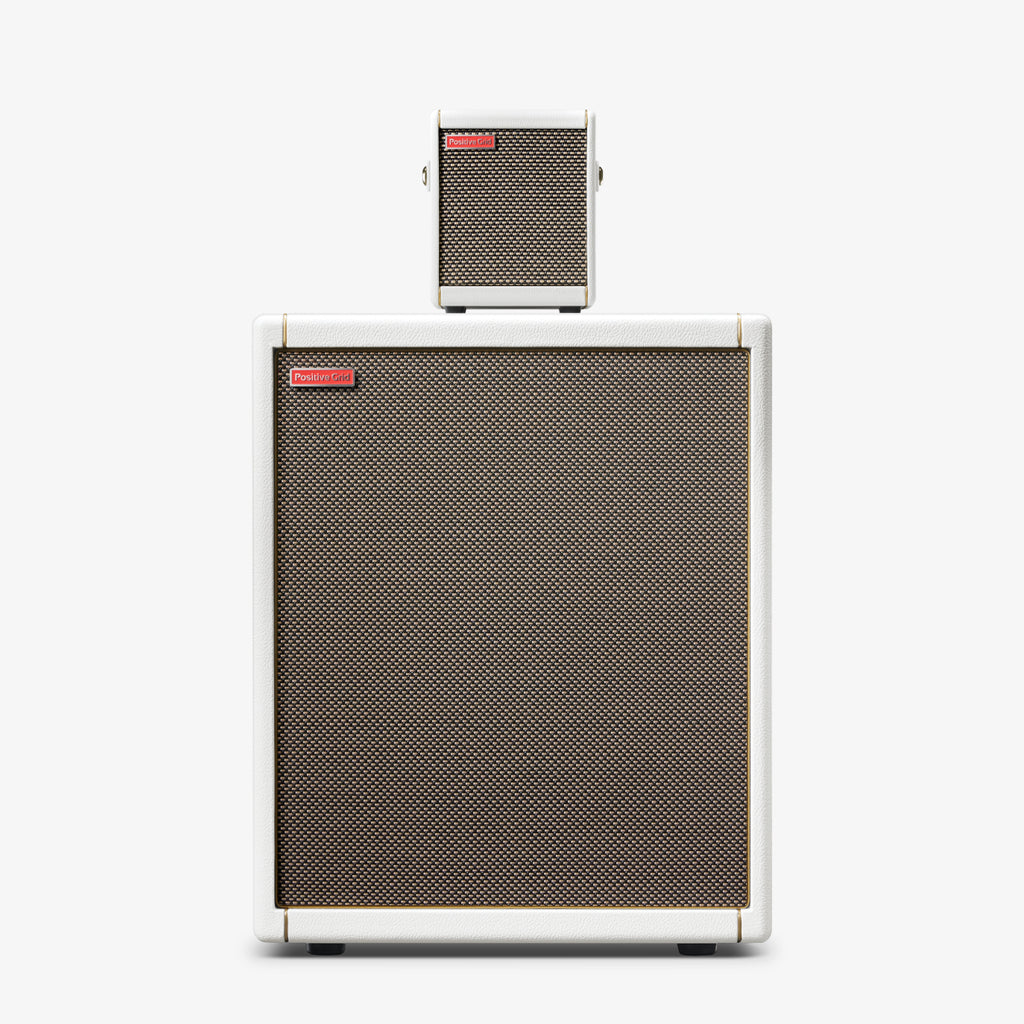

Spark CAB is optimized for all Spark series amps.
Outsized performance.
With plenty of power and headroom, CAB delivers authentic feel and high volume output. Precise and transparent audio reproduction allows players to hear every nuance, capturing the intricate details of every guitar tone.
WATCH THE WALKTHROUGH:
DESIGN
Built to perform.
It gets louder from here.

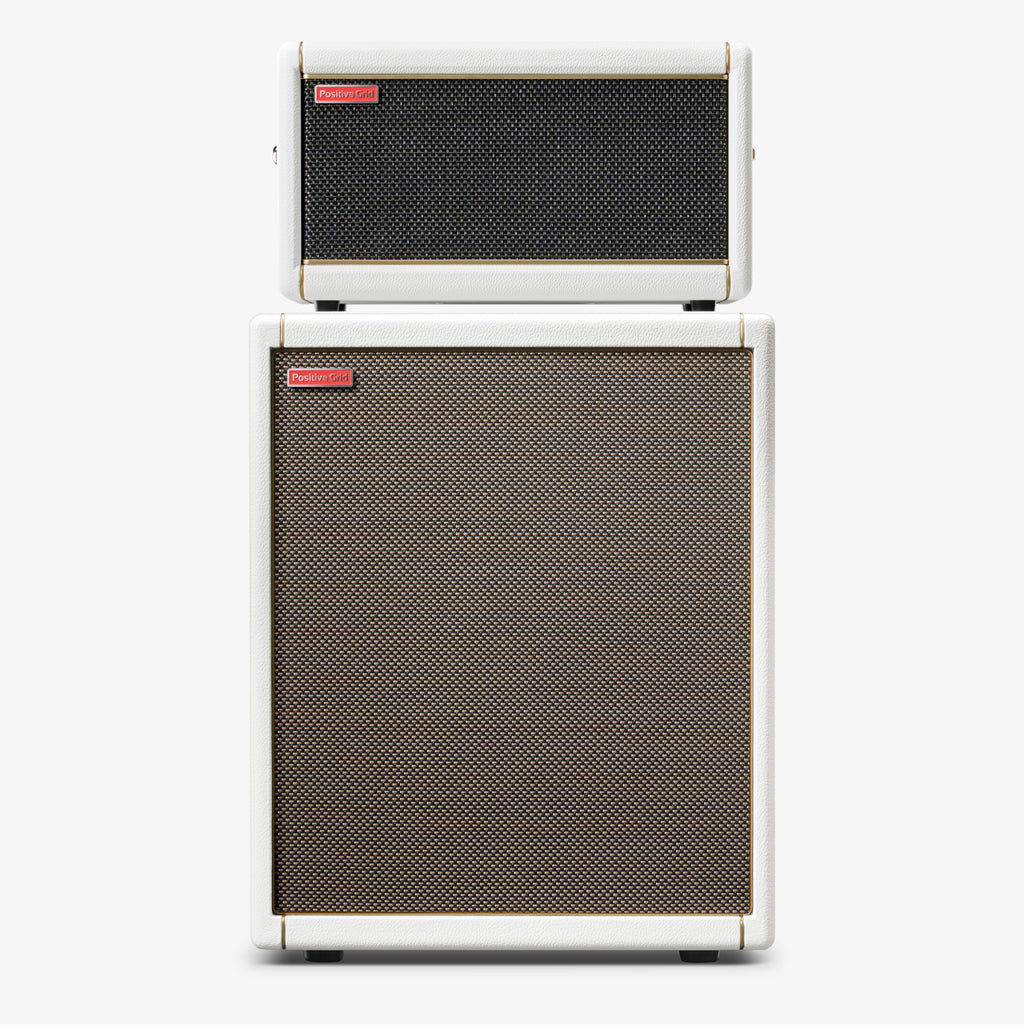

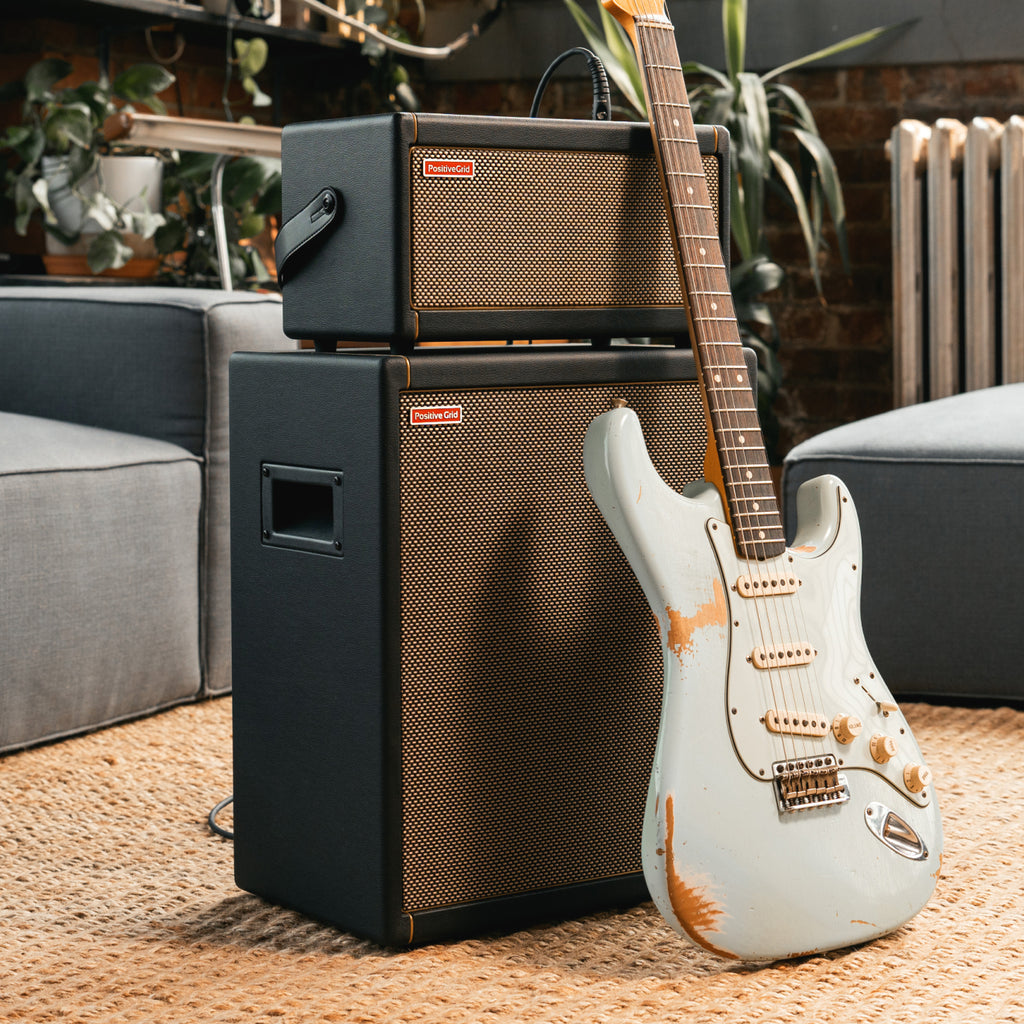

Spark CAB is optimized for Spark series amps,¹ with a dedicated input that perfectly aligns with Spark’s sonic output. But you can use it for any other modeler, instrument or amp with a direct out.² Plug ‘em in for gig-level sound anywhere.
Plug in.
Get loud.
¹Spark series amps sold separately. ²Spark CAB is an FRFR cabinet, meaning it's compatible with various amplifier types, such as digital amp processors, digital amp and effects floorboards, amp sims, or any gear that has a line-level output. Spark CAB is not compatible with traditional amps, such as tube amp heads, because the power transferred could potentially cause damage to both pieces of equipment. ³Adapter required to power Spark 2. Coming October 2024.
